Customizable Meter Box Production Line – Tailored to Your Factory Layout

This fully automatic meter box assembly line is designed for high-speed, precision assembly of electricity meter boxes and enclosures. Robotic stations, modular conveyors, and real-time SCADA integration support smart factory requirements. Integrated automated testing station performs dimensional check, seal integrity, and functional tests in-line.

Keywords:

Category:

Production line

Hotline:

+86 15734160869

Message

Detailed information

Core Functions and Configuration of Electric Meter Box Assembly Line

?I. Conveying System?

· ?Double-Speed Chain Assembly Line?
Adopts short-pitch roller chain structure for continuous pallet circulation, enabling dynamic assembly of meter boxes; compatible with lighting distribution cabinets/PZ30 enclosures.

· ?Slat Chain Conveyor?
Carries electrical cabinets/components, supports integrated assembly of scooters/control cabinets.

?II. Assembly Module Design?

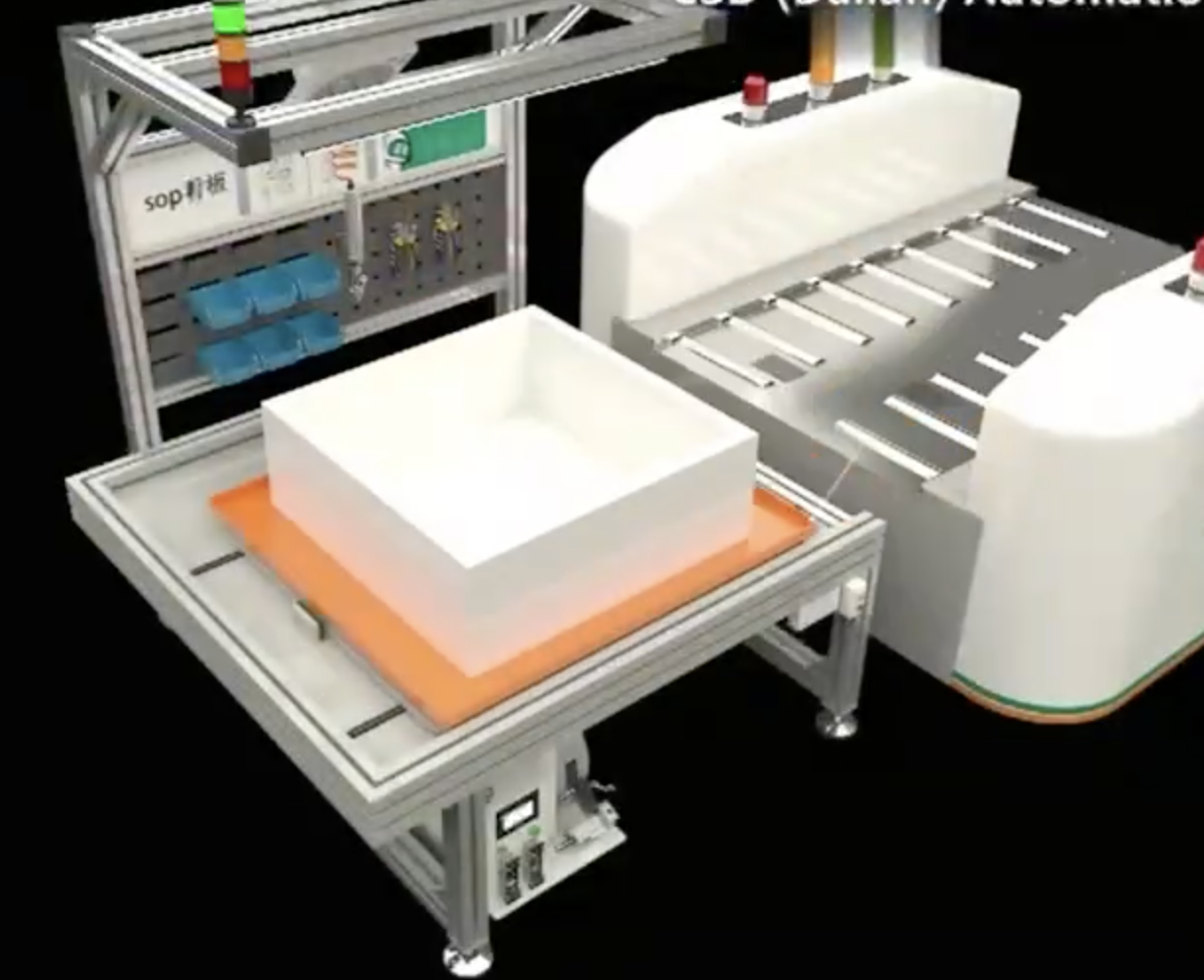

· ?Modular Pallet System?
Manual pallets with non-powered roller lines flexibly adapt to non-standard box assembly, enabling rapid model change.

· ?Pull-Out Storage System?
Patented design (CN 119328487 A) integrates storage/installation boxes with partitioned compartments for tools/screws, reducing part retrieval time by 40%.

?III. Automation Integration?

· ?Electrical Testing Unit?
End-of-line FCT station verifies wire cross-section and insulation resistance simultaneously.

· ?Robotic Collaboration Interface?
Plug-and-play mechanical arms via reserved rails for automated PCBA handling and cover assembly.

?IV. Key Performance Parameters?

?Parameter?	?Specification?	?Standard Reference?
Compatible Box Width	200–800mm adjustable	Customized equipment
Module Standard	18mm/module (IEC 60439)	Distribution box norms
Grounding Safety	Yellow-green wires to PE terminals	Electrical safety codes

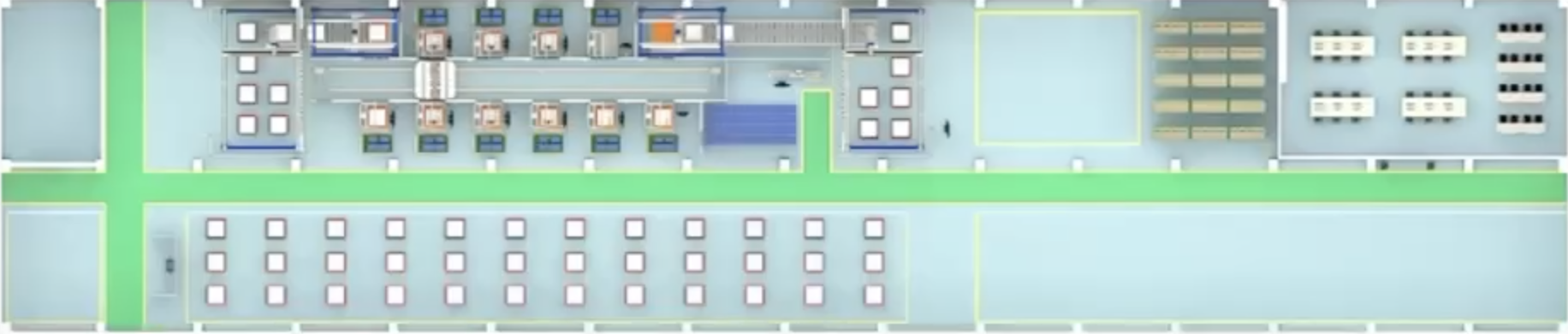

?V. Assembly Line Layout Scheme?

textCopy Code

Material Input → Pallet Positioning → Box Assembly → Screw Fastening → Electrical Test → Finished Product Output

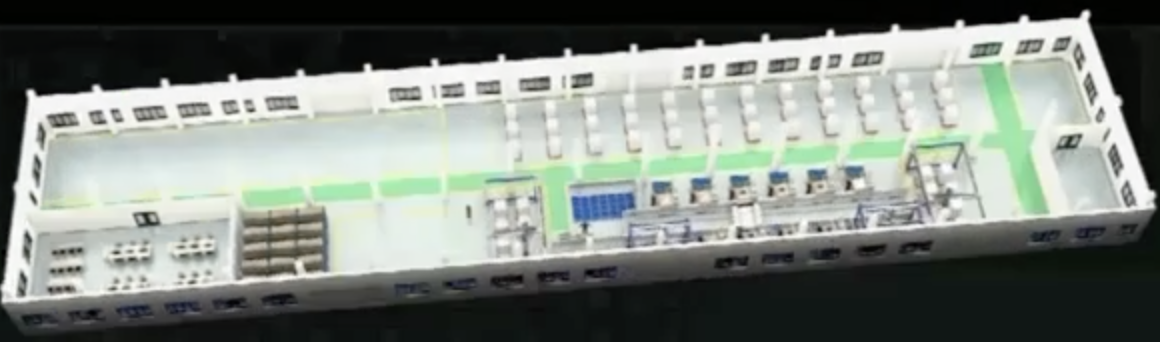

Note: Typical layout requires 94×15m space, supports welding/painting integration.

Core Advantages of Electric Meter Box Assembly Line

?I. Significant Productivity Improvement?

· ?Automated Rhythm Control?
Double-speed chain ensures stable pallet flow, enables continuous dynamic assembly with 300% efficiency gain vs. manual.

· ?Parallel Processing?
Multi-station synchronization (e.g., screw fastening + electrical testing), daily output exceeds 500 units.

?II. Comprehensive Quality Enhancement?

· ?Standardized Process?
Robotic precision in PCBA handling/cover assembly eliminates human errors, yield ≥99.99%.

· ?Closed-Loop Inspection?
FCT station auto-validates wire parameters; IEC 60439-compliant grounding with bicolored wires.

?III. Flexible Production Capability?

· ?Rapid Model Changeover?
Modular pallets enable one-click width adjustment (200–800mm) and 1–4 unit reconfiguration within ≤15 minutes.

· ?Customization Adaptability?
Non-powered rollers allow layout flexibility; pull-out storage system cuts auxiliary time by 40%.

?IV. Comprehensive Cost Optimization?

?Cost Factor?	?Traditional Mode?	?Assembly Line Mode?
?Labor Cost?	6–8 workers	2 monitoring personnel
?Rework Rate?	5%–8%	<0.01%
?Space Occupancy?	Decentralized layout	94×15m compact line^2^
